Class

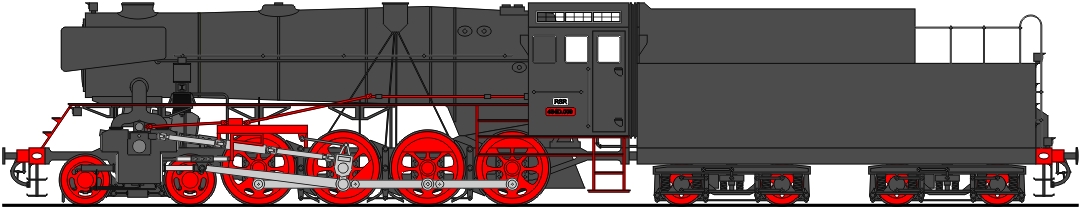

434E 3-Cylinder Compound General Purpose Locomotive
Designed
by Jochann Ketterik
Built
in 1985 (under the auspices of Artur Gorote)
by RSR Works, Bevice-Akohniçe, Ruhnia
By
the early 1980s the boilers of Mikhail Rodnivacek's 423E 4-8-4Ts were
feeling (and showing) their age. Ketterik clearly felt that these
engines had not yet had their day and decided to bring them into line
with current practice. The
most drastic aspect of the rebuild was the conversion to
3-cylinder compound drive. The outside cylinders retained their
quartering and received low-pressure steam and a new, high-pressure
inside cylinder was installed, its crank being set at 135° to each
of the outside ones. All
three cylinders drive the second coupled axle. The leading coupled axle
is cranked to clear the inside connecting rod. Steam is
fed saturated to the
high-pressure cylinder and resuperheated for the low-pressure
cylinders. In this way, an excessively high temperature of superheat is
avoided, simplifying the lubrication of the high-pressure cylinder. In
addition, the rebuild involved poppet valves,
boxpok wheels and
a new, tapered boiler, with a similar firebox to that used earlier on
the 323FFs and 533BBs, the difference being the installation of a gas
producer combustion system. Vanderbilt tenders were not fitted, since
the ability to run tender-first was still highly valued. The existing
clipper-sided tenders were fitted with new bogies. All 58 of the
engines
surviving in 1986 were rebuilt; work
proceeded quite slowly, the last rebuilt locomotive emerging from the
works in 1991. In the final analysis, not much was
left of the original design except the mainframes (suitably modified)
and the cabs and tender bodies.
