Class 364A
6-Cylinder
Doherty Compound Express Passenger Locomotive
Designed by Jochann
Ketterik
Built in 1966 by RSR
Works, Bevice-Akohniçe, Ruhnia
Although the heavy
goods engines of the RSR were the first Doherty types to enter regular
service, the cylinder arrangement was first tried out almost a decade
earlier. It seems strange, looking back, that the "trial balloon" shown
above was built at all. The purpose of the Doherty layout was to
maximise tractive effort and a mere three coupled axles would hardly
seem adequate to transmit the potential power. In fact, the 364A was in
many ways a guinea pig, being used to determine optimum boiler and
firebox dimensions for the new range of locomotives that Ketterik
was already developing, to examine the advantages of steam-jacketed
cylinders (as far as we know, only André Chapelon had used these
on a locomotive before, in 1948),
and to test improvements in steam flow through the use of multiple,
smaller cylinders. This last objective explains why the engine received
piston valves to begin with. Early tests showed that the grate area was
much
larger than required (for this engine, at least) and had to be reduced
by some ten square feet to avoid wasteful coal consumption. The
cylinders, although smaller that they would appear at first glance, due
to the steam jackets, were also too large, making the engine a poor
starter in less than optimum conditions. The sand consumption was the
highest of any locomotive on the entire RSR. On the positive side, the
tandem outside cylinders allowed an optimum cylinder volume ratio,
which was finally determined at 1:2.35, the steaming was excellent, due
to the
large, wide firebox (which was in turn due to the placing of the
trailing axle), and the coal and water consumption were very
economical. Other features adopted from Chapelon's 160A were
intermediate superheat and thermic syphons in the firebox.
Altogether, the
trials and experiments lasted all of six years and provided invaluable
information for the design of the now-legendary 564B of 1975. The

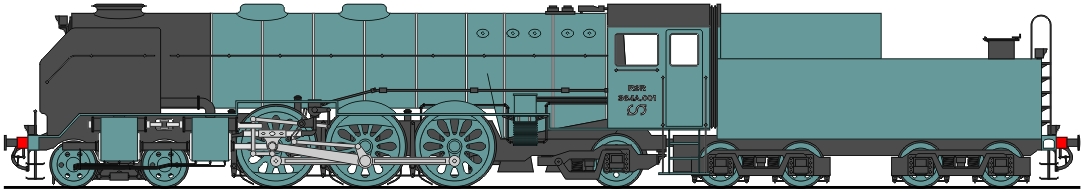

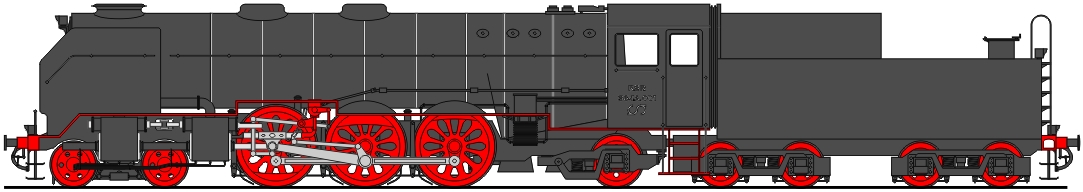

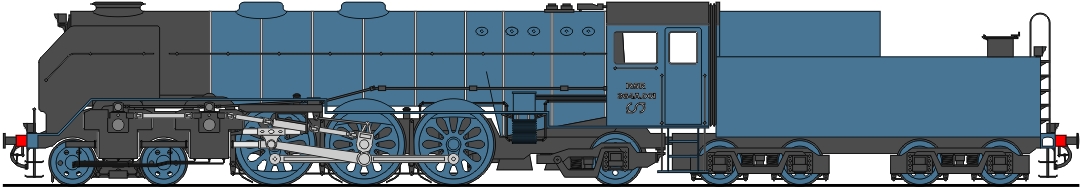

opportunity was taken, on some of the engine's many visits to the
works, of applying various liveries in an attempt to break finally with
the almost classical black with red wheels which had been in force
since 1931.
In 1968, no. 364A.001 was (finally?) fitted with poppet
valves, which she also retained when rebuilt in 1980.
