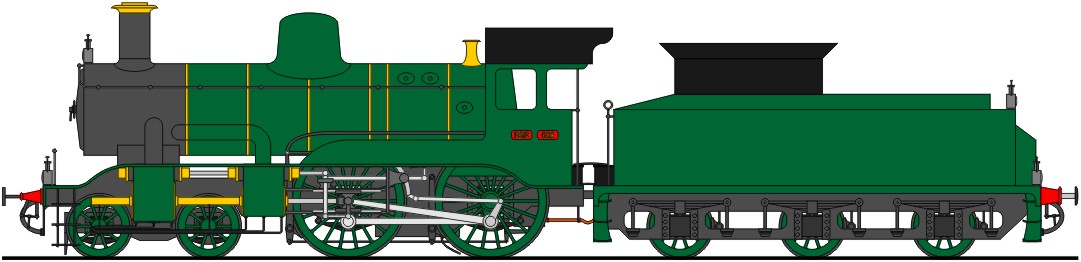

Class B9B
Four-Cylinder Compound Express Passenger Locomotive
Designed
by Karel
Belčamin
Developed in 1904 from Class B9A
Within less than a
year it was obvious that the B9A, despite its increased power, offered
no real advantage over the original class S (later B9). A second, more comprehensive
rebuild produced the B9B, which was useful both as a motive power unit
and as a basis for Belčamin's ongoing development programme. The
precursor of the most important characteristic of the 4-4-0s of 1906,
namely the boiler with high superheat, can already be seen. Other
improvements were new piston-valve cylinders, stronger mainframes and
axle journals and more generously-dimensioned valve gear, plus a higher
running plate and a shortened version of the Belčamin cab. A standard
tender was attached. The balancing still left much to be desired and
caused strong surging in the following train. This problem was
instrumental in motivating Belčamin to give up tandem compounds once
and for all and to apply only the De Glehn and Von Borries arrangements
in his later designs. The B9B
remained in use until 1911.
