Class

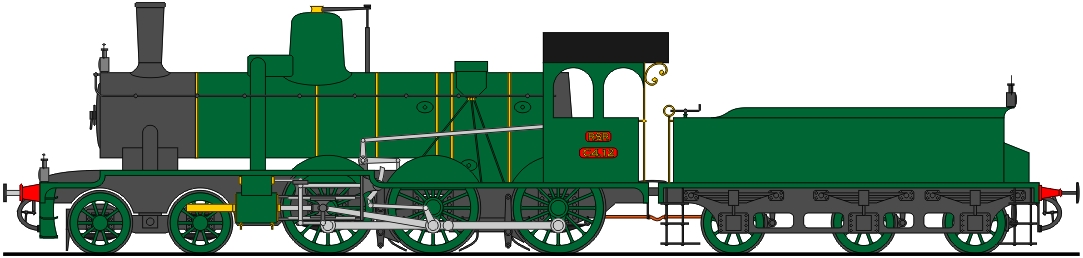

C4 4-Cylinder de Glehn Compound Passenger Locomotive
Designed
by Karel Belčamin
Built
in 1896 by Emil Škoda, Plzeň, Austria-Hungary
Following
the success of his class D5 2-8-0s, Karel Belčamin next set about
creating a mixed-traffic locomotive for the RK main line and the
southern highlands. The D5s had proved themselves well, except that
their tandem compound cylinders gave rise to large reciprocating forces
and the piston rod glands between high and low pressure were awkward to
maintain. The de Glehn arrangement seemed to be what was needed. An
initial order of twelve of these 4-6-0s was delivered by Škoda during
1896. Only a few were in service, however, when it became clear
that all was not well with the Belčamin pioneer 4-6-0. The front bogie
did not provide adequate guidance, making the engines very rough-riding
and causing two derailments in the space of four months; running was
also very sluggish, due, evidently, to constricted steam passages, an
unfavourable cylinder volume ratio of 1:1.68 (a low figure compared to
that being used by Belčamin's contemporaries) and a high exhaust
back-pressure, applied in an attempt to improve the extremely
unreliable steaming, which prompted more than one motive power depot
manager to insist on double-heading. Since these problems stemmed from
basic faults in the design (of itself a damning indictment of
Belčamin's engineering ability and of the RSR's successor grooming
policy), they could not be corrected by tinkering. Belčamin's solution
was radical but effective. All twelve engines were withdrawn as soon as
enough of the new class C5 4-6-0s were available to substitute for them
and scrapped within a few years. This was not the last time that
Belčamin adopted a "slash and burn" policy to deal with unsatisfactory
engines.
